EQUIVALENT AND COMPATIBLE STANDARDS:
• Standard: YB/T-2002
CHARACTERISTICS AND APPLICATIONS:

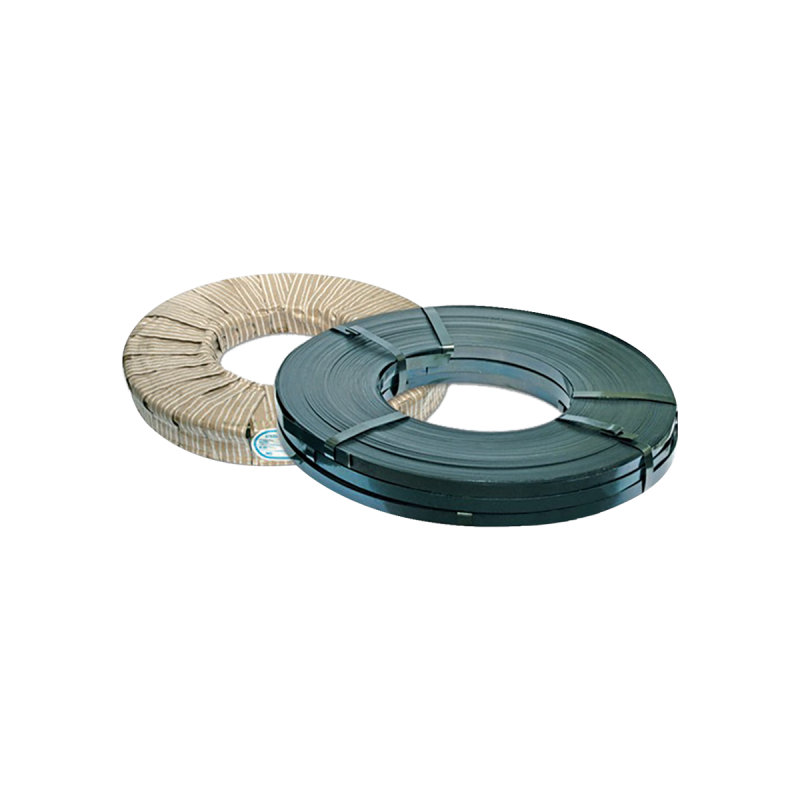

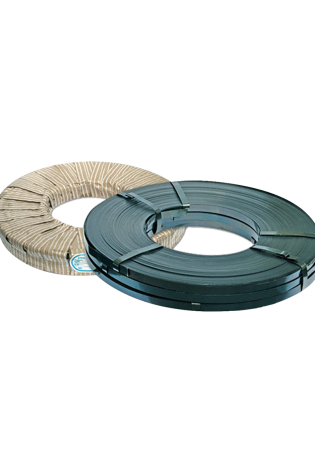

• Steel strapping that has not been powder coated but has been dipped in oil is a type of steel that has been treated through an oil steaming process and is used for normal packages that do not require rust, such as packing packages with pallets or wooden crates.

Steel strapping has good tension and high strength, is cold rolled so it has little elasticity and is a specialized type of steel strapping used to strap goods, especially heavy goods.

Safe for goods and users.

PACKING SPECIFICATIONS:

No.	Product specifications	Packaging specifications	Weight (Kg/package)	Tolerance (Kg)	Origin
1	16mm x 0.5mm	3 rolls/bale	50kg	+/-0.5kg	China
2	19mm x 0.5mm	3 rolls/bale	50kg	+/-0.5kg	China
3	19mm x 0.5mm	3 rolls/bale	50kg	+/-0.5kg	China
4	32mm x 0.5mm	2 roll/bale	50kg	+/-0.5kg	China

MECHANICAL PROPERTIES:
• Ultimate tensile strength:580-780 MPA
• Elongation:3% -5%

TOLERANCE:
• Thickness tolerance: +/- 0.03mm
• Width tolerance: +/- 0.10m

CHEMICAL COMPOSITION (%):

STT	SPECIFICATIONS	C	Si	Mn	P	S	Fe
01	16mm x 0.5mm	0.09-0.15	≤0.30	0.25-0.55	≤0.045	≤0.050	99.265-98.90
02	19mm x 0.5mm	0.09-0.15	≤0.30	0.25-0.55	≤0.045	≤0.050	99.265-98.90
03	19mm x 0.6mm	0.09-0.15	≤0.30	0.25-0.55	≤0.045	≤0.050	99.265-98.90
04	32mm x 0.8mm	0.09-0.15	≤0.30	0.25-0.55	≤0.045	≤0.050	99.265-98.90
